SC.Data&Media Gateway

Tariffing and processing WAP/HTTP/Internet traffic

This system measures billing of WAP and internet traffic depending on content of data, in contrast to standard billing methods, which are based on volumes of consumed data traffic.

Installation of such a system will enable a mobile operator to set different tariffs for various media and content downloaded by the subscriber even if different content is the same size in bytes.

SC.DMG can also be used for subscriber’s authentication in such services as web services, Push to Talk, IMS, SyncML, etc.

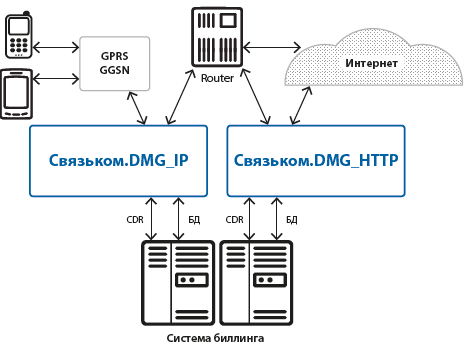

The platform consists of two subsystems which can be used independently:


Key features of SC.DMG_IP subsystem

  • Traffic accounting by IP direction and IP subnetworks
  • Classify IP direction by traffic type:
    • incoming
    • outgoing
    • bidirectional
  • Keep track of maximum traffic limit per subscriber, according to the account balance
  • Allow/deny access to IP directions, for example allow subscriber to access the operator’s web site, even with insufficient funds in subscriber’s account
  • Blocking traffic between subscriber’s subnetworks, if they are not connected to PDSN/GPRS networks, in order to avoid data traffic loops between PDSN/GPRS equipment and router
  • Generate billing information for postpaid accounting systems according to operator’s requirements
  • Interaction with billing system during an internet session, for debt prevention

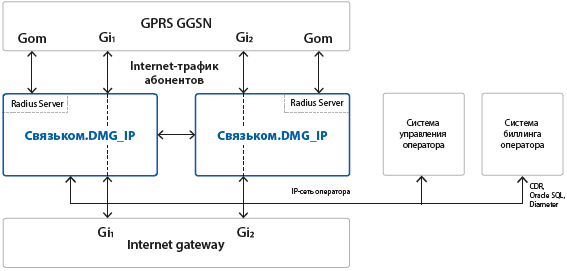

​SC.DMG_IP integration scheme

Key features of SC.DMG_HTTP subsystem

  • Manage billing information for all requests for file downloads via HTTP, WAP gateway
  • Maintain database of subscriber’s MSISDN compliance with current IP address, using RADIUS Accounting
  • Generate billing information for postpaid accounting systems according to operator’s requirements
  • Billing information about HTTP/WAP subscriber’s requests consists of many fields, allowing very flexible traffic tariffing. It can also include various standard and non-standard fields from RADIUS packages received from GGSN
  • Prompt interaction with billing system — enforces limit for file downloads according to the account balance
  • Adding MSISDN field into HTTP headers for specific domains
  • Generating an information message to subscriber before redirecting to any paid resource
  • API for receiving a subscriber’s IP address from an external system, and replying with the subscriber’s IP address and MSISDN
  • Building online database with subscriber’s MSISDN and current IP using RADIUS Accounting information from GPRS equipment
  • Easy service provider connection
  • Proxy for RADIUS Accounting traffic from GGSN

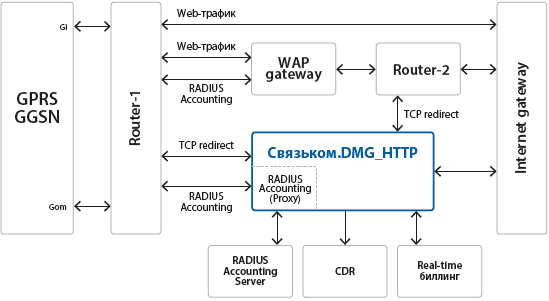

​Integration scheme

Benefits & advantages

  • The billing methods used in the SC.DMG system simplify the process of receiving mobile content to an elementary two-step operation: (i) upon selection of a multimedia object by a subscriber and (ii) its download. This results in simplicity and convenience of content delivery for the operator’s subscribers
  • Any melody, picture or game downloads from a WAP or web site directly into a mobile phone without sending any SMS, which means that the internet session will not be interrupted
  • Possibility for a mobile operator to fully control the process of delivery of mobile content to its subscribers, thus, bringing the operator’s service quality to a higher level
  • Online data collection and registration of all HTTP/WAP traffic events allows for setting flexible content tariffs (that can be simply changed according to operator’s and content provider’s desire)
  • Failover architecture allows switching to reserve components in real time

​Implementation results

  • Increased ARPU by means of VAS
  • Capability for content providers to quickly join operator’s WAP/Internet CPA
  • Subscribers enter the zone of premium-rate services with ease
  • Lack of problems that arise from information interchange by means of SMS and USSD
  • Guarantee enhancement of charging a subscriber only for services rendered
  • Higher subscriber loyalty
  • Simple relationships with content providers
  • Stimulation of internet traffic growth
